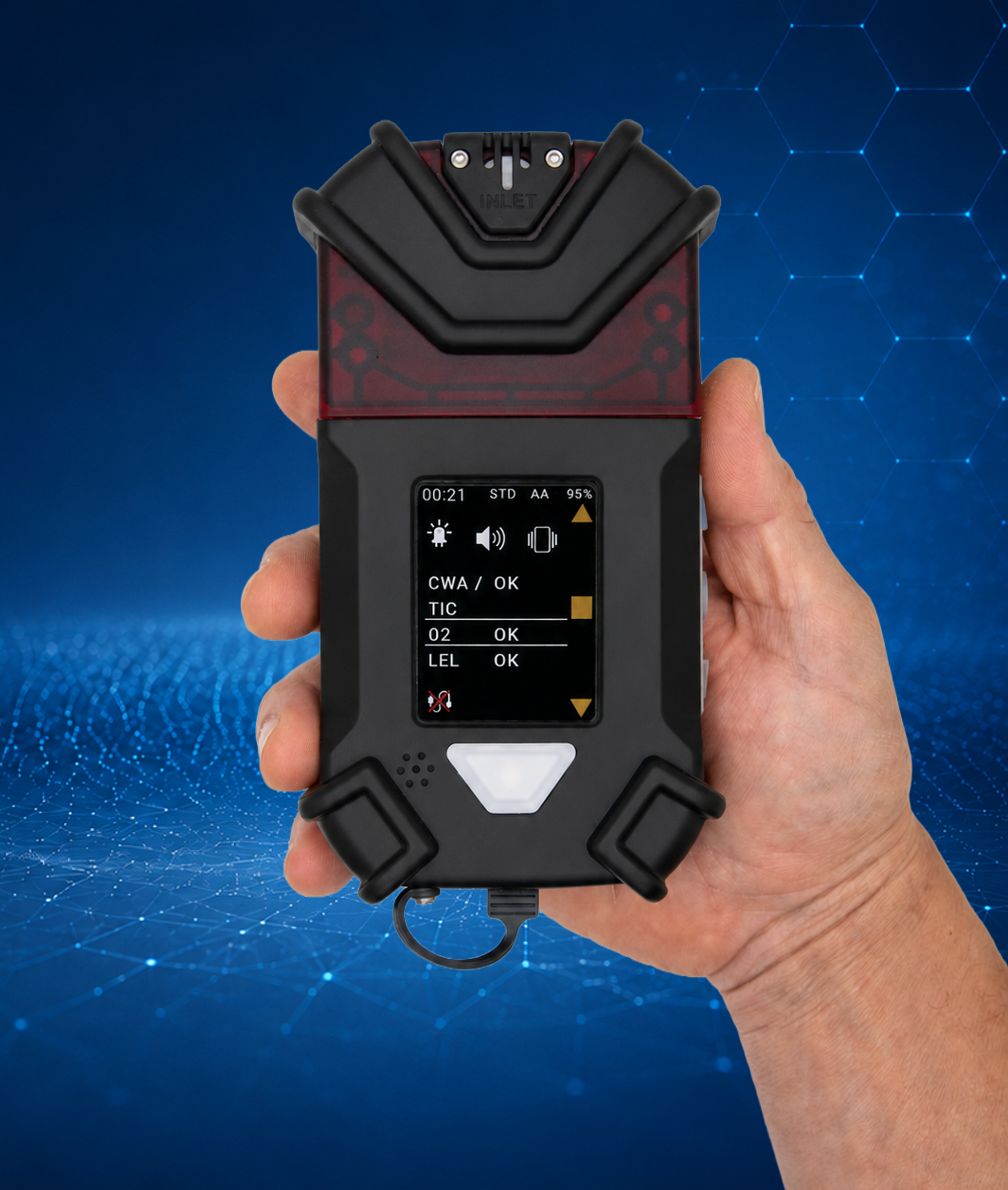

ChemBadge MX™ is a rugged, low-power, wearable multi-gas detector designed for rapid autonomous detection and alerting to chemical vapors and gases — built around N5 Sensors' SPH™ sensing technology.
Next-generation sensing platform purpose-built for chemical and vapor detection in dynamic field environments.
Wi-Fi, BLE, and USB interfaces enable real-time data sharing and remote alerting.
12-hour operational battery life ensures readiness for surge deployments and stockpiling.
Rated for submersion up to 1 meter, supporting reliable performance in rain and wet field environments.
Designed to meet MIL-STD-810H environmental and MIL-STD-461 EMI/EMC requirements.
At just 1.1 lbs and designed for field wear, without impeding operator mobility.
Chemical warfare agents
Toxic industrial chemicals
Lower explosive limit gases
Oxygen depletion monitoring
Carbon monoxide detection
| Dimensions | 2.1" × 4.5" × 1.8" |
| Weight | 1.1 lbs |
| Ruggedization / Drop Test | 25 ft drop; MIL-STD-810H tested |
| Networking Capability | Wi-Fi, Bluetooth Low Energy (BLE), USB |
| Battery Life | 12 hours |
| Detection Capability | CW, TIC, O₂, LEL, CO; IDLH / AEGL-3 (10-min) |
| Detection Time | 5 – 15 – 90 seconds |
| Environmental Range | -32°C to 65°C, 5–95% RH |
| Waterproofing | Water submersion up to 1 meter |
| EMI Compliance | Designed to meet MIL-STD-461 |
| Sensing Technology | N5 Sensors SPH™ next-generation platform |
Talk to our team about individual units, fleet deployment, or integration pathways.
